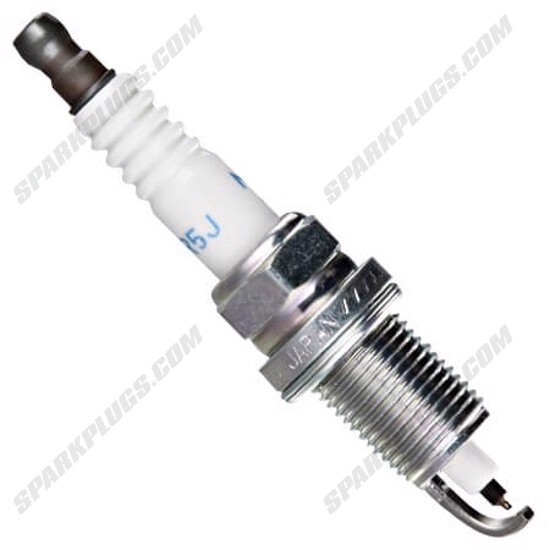

NGK Laser Iridium spark plugs provide superior ignitability and long service life. Fine wire iridium tipped center electrode and fine wire platinum tipped ground electrode ensures slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent flashover
Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
Copper core aids in heat removal
Triple seals prevent leakage
Thread Diameter14mm
Thread Pitch1.25mm
Seat TypeGasket
Reach19mm (3/4")
Hex Size5/8" (16mm)
Terminal TypeSolid
Overall HeightISO
Gap.031" (0.8mm)
Center Electrode
MaterialIridium
TypeFine Wire
Size1.0mm
ProjectionExtended Projection
Ground Electrode
MaterialPlatinum
TypeStandard
Quantity1
Specifications
ResistorYes
Resistor Value5k Ohm
Heat Range5
Torque SpecsCast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
